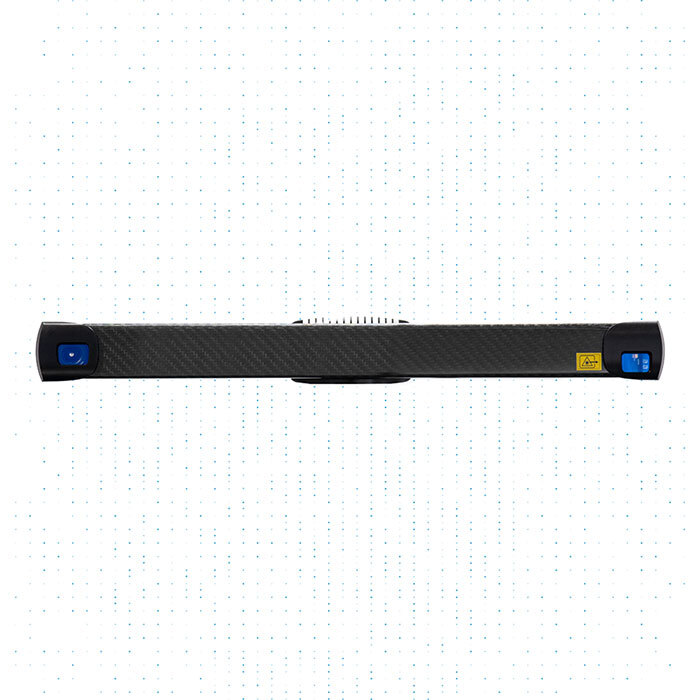

PhoXi 3D Scanner L


Scanner with high range especially useful for scanning of objects and bins of with a size of euro pallet. It found its use in vision-guided robotics projects especially in automotive. However thanks to its versatility it was used in a variety of industrial sectors, ranging from medical, logistics, agriculture, or heavy industries.

Datenblatt

Parameter Wert
Auflösung (3D-Punkte) Bis zu 3,2 Millionen 3D-Punkte

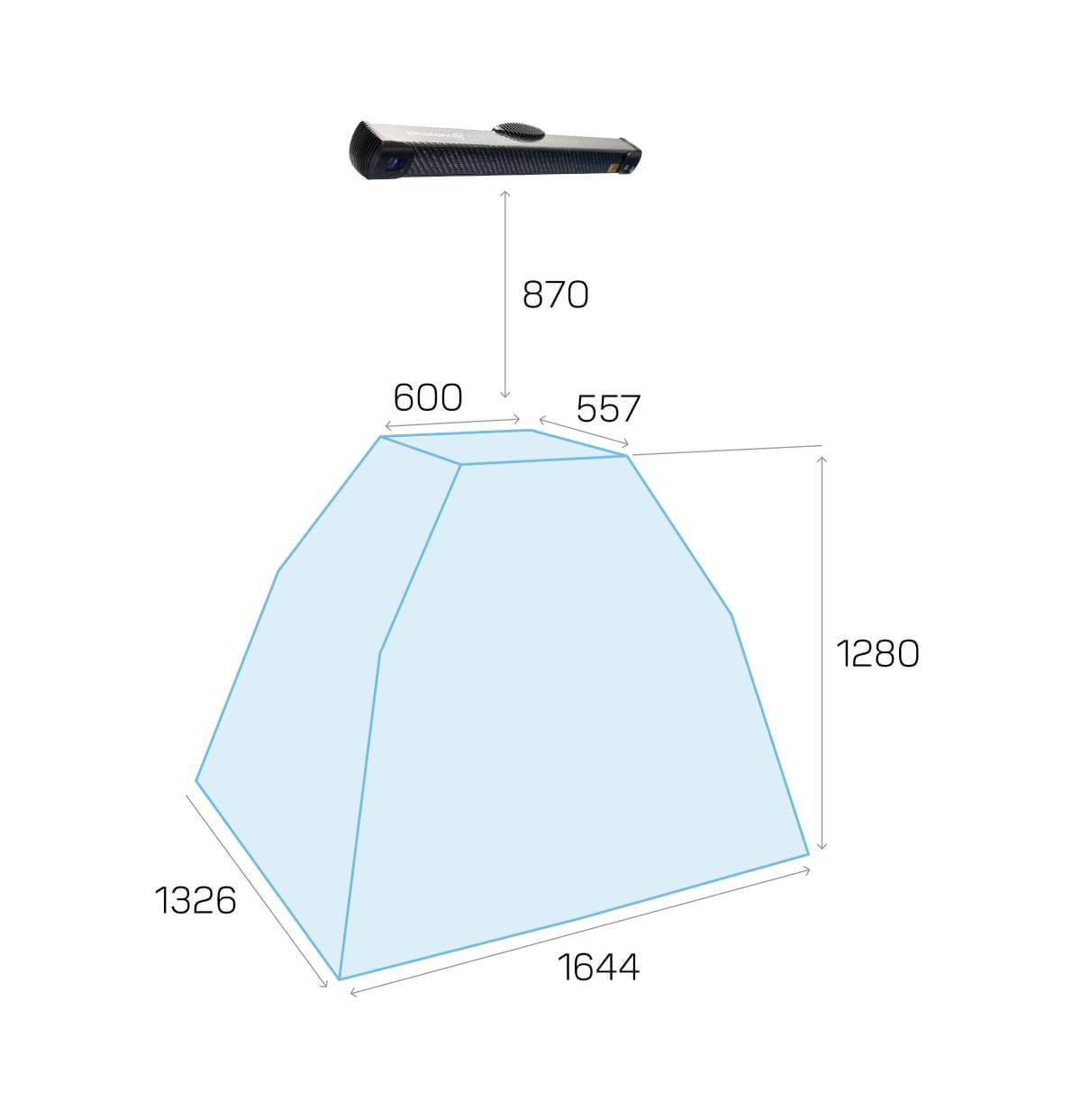

Tastweite 870 – 2150 mm
Optimaler Scan-Abstand 1239 mm
Scan-Bereich am Sweet Spot 1082 x 802 mm
Abstand von Punkt zu Punkt 0.524 mm
Kalibrierungsgenauigkeit (1 σ) < 0.200 mm
Zeitliches Rauschen (1 σ) < 0.190 mm
Scan-Zeit 250 – 2750 ms
Abmessungen 77 x 68 x 616 mm
Grundlinie 550 mm
Gewicht 1100 g
3D-Punktdurchsatz 16 Million points per second
GPU NVIDIA Maxwell™ 1 TFLOPS
with 256 NVIDIA® CUDA® Cores

Tastweite

XS
PhoXi 3D Scanner XS
S
PhoXi 3D Scanner S
M
PhoXi 3D Scanner M
L
PhoXi 3D Scanner L
XL
PhoXi 3D Scanner XL
