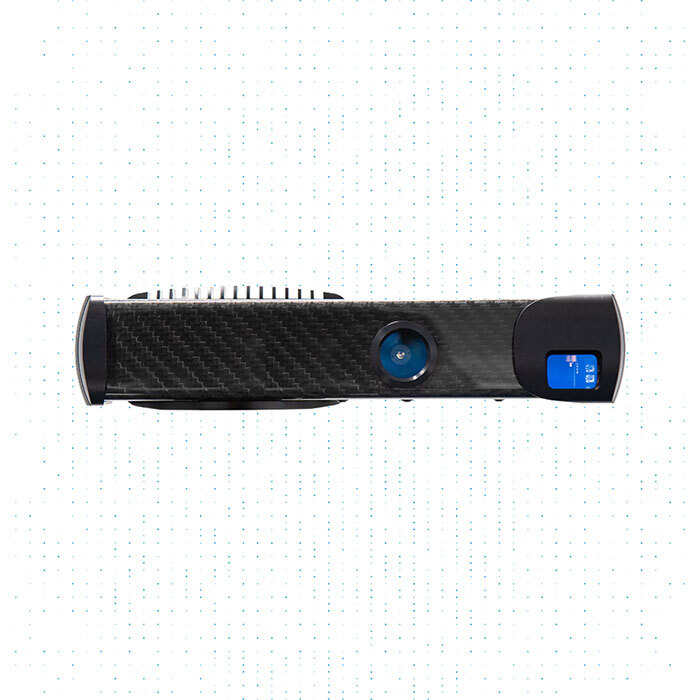

PhoXi 3D Scanner XS


The smallest device from the PhoXi 3D Scanner family. It is perfect for scanning of ultra-small objects such as PCB’s, or connector pins. It is especially useful when looking for high level of detail.

Datenblatt

Parameter Wert
Auflösung (3D-Punkte) Bis zu 3,2 Millionen 3D-Punkte
Tastweite 161 – 205 mm
Optimaler Scan-Abstand 181 mm
Scan-Bereich am Sweet Spot 118 x 78 mm
Abstand von Punkt zu Punkt 0.065 mm
Kalibrierungsgenauigkeit (1 σ) < 0.035 mm
Zeitliches Rauschen (1 σ) < 0.030 mm
Scan-Zeit 250 – 2000 ms
Abmessungen 77 x 68 x 296 mm
Grundlinie 85 mm
Gewicht 900 g
3D-Punktdurchsatz 16 Million points per second
GPU NVIDIA Maxwell™ 1 TFLOPS
with 256 NVIDIA® CUDA® Cores

Tastweite

XS
PhoXi 3D Scanner XS
S
PhoXi 3D Scanner S
M
PhoXi 3D Scanner M
L
PhoXi 3D Scanner L
XL
PhoXi 3D Scanner XL
