.. - BPS now computes collisions with the grasped part
- Collision checking with other objects localized in the bin – the localization can detect objects even if they are not entirely visible in the scene. The entire model is rendered into the scene and used as a collision object.
- Gripper collision sensitivity - when picking with a two-finger gripper, the robot sometimes collides with the neighboring objects. As a solution to this problem, users are now allowed to define the gripper sensitivity and set what percentage of the gripper volume may get in a collision with the scanned point cloud or with any currently detected objects.
- The waypoint computation is 100 times faster for most of our robots thanks to the brand new inverse kinematics calculation algorithm
- Connections to cameras are faster
- The solution startup speed was reduced by 50%
- The Localization GUI now allows the definition of a bounding box where the detection will take place, leading to higher speed and increased safety
- A segmented image is now available, which is crucial for proper configuration of the localization settings
- computed grasping positions
- picking path stages
- trajectories
- Added support for drawing simple collision objects directly in the GUI
- Added support for resizing and scaling the environment objects
- The robot is now displayed in the environment configuration GUI
- Connected and calibrated scanners are now automatically displayed in the environment
- Connected vision systems can be triggered and the point cloud will be displayed, enabling a quick verification of the position of objects in the scanner’s view
- It has never been easier to set up the scanners’ field of view thanks to the possibility to display their scanning volumes
- Added pre-configured calibration ball, with its diameter being remembered by the system
- Possibility to visually verify the calibration results in the embedded visualizer

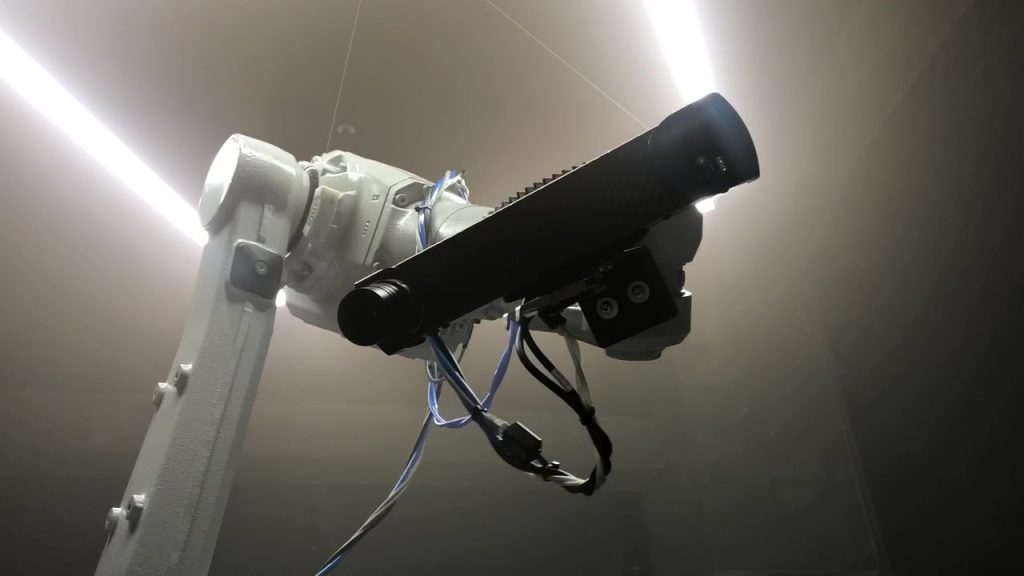

- Supported hand-eye calibration
- The approach and de-approach waypoints are now mandatory
- Motions planned between approach and de-approach path stages are planned as linear motions
- The maximum number of waypoints is 11
- The sampling step in linear trajectories can be configured in User settings
- Solution attachments to keep all data in one place. Users can attach additional files, such as robot program backups or additional CAD files, into their solutions. The files will be embedded directly into PBCF solution exports.
- Possibility to choose between a titles view or table view in the section of robots, grippers, and picked objects
- New user roles and a user access management section to assign different access rights to different users of the BPS.
- Welcome page for the initial, quick setup of:
- the installation timezone,
- customer’s accounts
- If you have a picking preference, you can now let the system know by setting your Favorite gripping point - by assigning it a high, medium or low status
- Troubleshooting of network connections is now easier due to new, descriptive error handling
- Inhibit the robot from picking partially occluded parts which often causes blocking
- Specify the direction in which the parts are to be picked. You can now configure the picking priority vector in the robot space.
- Disable or enable a collision with the picked part, depending on the object user handle
-
Become the ultimate master of bin picking with the new Bin Picking Studio 1.4.0!
..
