2D or 3D? Finding the Perfect Machine Vision Fit For Your Application

By Pavel Soral || January 21, 2025

2D vs 3D vision? In industrial automation, selecting between 2D and 3D machine vision systems is a critical choice that influences the precision, efficiency, and reliability of applications. As machine vision technology advances, manufacturers are challenged to choose the most suitable system for their specific needs.

2D vs 3D Vision Fundamentals

This guide explores the advantages and applications of 2D and 3D machine vision systems, highlighting when each should be employed to optimize processes and enhance quality control.

Intro to 2D Vision

2D machine vision systems capture and analyze two-dimensional images, providing a flat representation of the object being inspected. These systems use cameras to capture images and algorithms to analyze patterns, colors, and contrasts within a single plane. 2D vision systems are effective in applications where surface inspection, object recognition, or defect detection are the main goals.

Intro to 3D Vision

Unlike 2D vision, 3D machine vision systems add depth to the analysis by capturing three-dimensional data, including distance and volume. Using technologies like structured light, laser triangulation, or stereo vision, 3D systems create a detailed model of the object’s shape and dimensions. This extra dimension is especially valuable for applications requiring precise measurements, shape analysis, and complex geometric inspections.


Learn more in our article about 2D and 3D vision system mechanisms.


Seeing in 2D: Advantages and Limitations of Two-Dimensional Machine Vision

2D vision systems provide a foundational approach to machine vision, capturing images in two dimensions – width and height – and analyzing objects as flat entities. This technology has been a cornerstone of industrial automation for decades, offering a range of benefits for specific applications.

Where 2D Vision Excels

  • Simplicity and Speed: 2D imaging’s inherent simplicity allows for rapid processing, making it ideal for high-speed applications like inspecting parts on a fast-moving conveyor belt.
  • Cost-Effectiveness: Compared to their 3D counterparts, 2D systems often come with a lower price tag, making them an attractive option for budget-conscious projects.
  • High Contrast Sensitivity: 2D vision thrives in situations with high contrast or when the primary focus is on analyzing textures and colors. This makes it well-suited for applications like inspecting printed circuit boards or verifying product labels.
  • Dominance in Established Applications: 2D vision remains the go-to solution for many traditional machine vision tasks, particularly those involving static objects or predictable environments. Classic examples include pick-and-place operations with fixed part orientations.

Challenges of the 2D World

While 2D vision offers numerous advantages, it’s essential to be aware of its limitations:

  • Environmental Sensitivity: 2D systems demand highly controlled environments with standardized viewpoints and meticulously calibrated lighting. This ensures optimal contrast and minimizes shadows that can disrupt image analysis.
  • Lack of Depth Perception: A key drawback of 2D vision is its inability to perceive depth or volume. This limits its use in applications where understanding an object’s three-dimensional structure is crucial.
  • Vulnerability to Lighting Variations: Changes in ambient lighting can significantly impact the performance of 2D systems. This sensitivity necessitates careful control of lighting conditions throughout the vision system’s operation.

Most Fitting Applications of 2D Vision Systems

Despite these limitations, 2D vision remains a powerful tool for a wide range of industrial automation tasks. By understanding its strengths and weaknesses, you can make informed decisions about when it’s the right choice for your specific needs. Let’s look at the industrial applications where 2D visions’ strengths come to fruition.

1. Surface Inspection

2D machine vision systems are highly adept at identifying surface-level imperfections. This capability makes them an excellent choice for industries where the visual appearance of products is of paramount importance.

For instance, in the electronics, automotive, and packaging sectors, the presence of scratches, discoloration, or other minor irregularities can significantly impact product quality and consumer perception.

2D machine vision systems can efficiently and accurately pinpoint these flaws, ensuring that only products meeting the highest aesthetic standards proceed to the market.

2. Recognition and Sorting of Objects

When tasks involve recognizing or sorting objects based on visual attributes, 2D vision systems are highly effective. Commonly used in logistics, these systems enable automated sorting of packages by analyzing labels, logos, or barcodes, ensuring items are correctly routed.

2D vision systems excel at quickly and accurately identifying objects based on their appearance. This capability is particularly valuable in logistics, where packages need to be sorted efficiently and accurately.

By analyzing visual cues like labels, logos, or barcodes, 2D vision systems can automatically direct packages to their correct destinations, improving the speed and accuracy of sorting processes. This automation reduces the risk of human error and increases the overall efficiency of logistics operations.

3. Barcode and QR Code Reading

In applications requiring barcode or QR code scanning, 2D vision systems are widely used due to their speed and accuracy. Retail, logistics, and pharmaceutical industries depend on 2D vision for inventory tracking and real-time management, benefiting from the technology’s efficiency in reading codes. 2D vision systems are well-suited for applications that require fast and accurate scanning of barcodes and QR codes.

These systems are commonly used in industries such as retail, logistics, and pharmaceuticals, where efficient and reliable inventory tracking and management are crucial. By quickly and accurately reading codes, 2D vision systems enable businesses to monitor their stock levels in real-time, ensuring that products are available when and where they are needed.

4. Presence/Absence Detection

For straightforward tasks like verifying the presence or absence of a component on a production line, 2D vision offers a cost-effective solution. This approach is frequently used in quality control processes to confirm that required components are included in each assembly. 2D vision systems are a cost-effective solution for simple presence/absence detection tasks in quality control.

For example, on a production line, a 2D system can quickly verify if a screw, label, or other component is present in the correct location. This helps ensure that products are assembled correctly and meet quality standards, preventing defective products from reaching customers. This type of inspection is crucial in industries with high production volumes, where manual inspection would be time-consuming and prone to errors.

5. High-Throughput Industrial Lines

2D vision systems are well-suited for high-speed environments that demand quick, reliable inspections. Their rapid image-capturing capabilities make them ideal for industries with high throughput requirements, where inspection delays can disrupt production efficiency.

2D vision systems are particularly well-suited for industries like food and beverage or pharmaceuticals, where high-speed production lines require rapid inspection of products for defects or contaminants.

The ability of 2D systems to quickly capture and analyze images allows for real-time quality control, ensuring that only products meeting the required standards are packaged and shipped. This minimizes waste, reduces the risk of product recalls, and maintains a brand reputation.

Beyond the Surface with 3D Machine Vision

3D vision systems represent a significant leap forward in machine perception, capturing the world in its full three-dimensional glory – width, height, and depth. This capability unlocks new possibilities for automation, particularly in applications requiring intricate manipulation, precise measurement, and a deeper understanding of object geometry.

3D scanning and digital twinning of large objects

Where 3D Vision Shines

  • Depth Perception: Unlike their 2D counterparts, 3D systems accurately perceive depth and volume. This allows them to measure dimensions, detect subtle surface variations, and navigate complex environments with ease.
  • Robustness to Lighting Changes: 3D vision systems are less susceptible to variations in lighting conditions. This stability ensures consistent performance even in dynamic environments where shadows and reflections might challenge 2D systems.
  • Handling Complexity with Grace: 3D vision excels at recognizing and manipulating complex objects, making it ideal for tasks like bin picking, where parts are randomly positioned and oriented.
  • Guiding Robots with Precision: By providing accurate spatial information, 3D vision empowers robots to perform intricate tasks such as assembly, welding, and painting with unprecedented accuracy.
  • Adaptability and Intelligence: 3D vision enables robots to adapt to variations in their environment, making them more versatile and capable of handling dynamic situations. This “spatial awareness” allows robots to adjust their trajectories, avoid collisions, and optimize their movements in real time.

Navigating the 3D Landscape

While 3D vision offers compelling advantages, it’s important to consider its nuances:

  • Implementation Complexity: Integrating 3D vision systems can be more complex than 2D, often requiring specialized expertise and careful calibration.
  • Cost Considerations: The advanced technology behind 3D vision typically translates to higher costs for hardware and software components.
  • Surface Challenges: While generally robust, 3D vision can encounter challenges with highly reflective or uniform surfaces, which may require specific techniques or adjustments.

When to Embrace 3D Vision

3D vision is a game-changer for applications that demand:

  • Sophisticated robotic guidance
  • Handling of complex or irregular objects
  • Precise measurement and inspection
  • Adaptability to dynamic environments

Most Fitting Applications For 3D Visions Systems

By embracing 3D vision, businesses can unlock new levels of automation, improve efficiency, and enhance the capabilities of their robotic systems. Here are some of the well-adopted 3D vision system use cases.

1. Dimensional Analysis and Measurements

3D machine vision provides accurate depth information, making it ideal for applications that require precise measurements. Industries such as aerospace, automotive manufacturing, and precision engineering rely on 3D vision systems for quality control, ensuring dimensional compliance with strict standards.

3D machine vision systems excel at capturing precise measurements of objects, including their height, width, and depth. This high level of accuracy is crucial in industries with stringent quality control standards, such as aerospace and automotive manufacturing.

By utilizing 3D vision for inspections, manufacturers can ensure that components and assemblies adhere to exact specifications, minimizing the risk of defects and ensuring optimal performance. This not only improves product quality but also reduces the likelihood of costly rework or recalls.

3D measurement, dimensional analysis and volumetric inspection in manufacturing and logistics

2. Volumetric Inspection and Analysis of Shapes

For applications that demand a detailed understanding of an object’s shape or volumetric characteristics, 3D vision is essential. It is especially useful in assessing molded or machined parts, where a comprehensive view of the object’s geometry is required to meet specific tolerances. 3D machine vision is particularly useful in industries that manufacture parts through molding or machining processes.

These processes often involve complex geometries and tight tolerances, which can be difficult to inspect using traditional 2D vision systems. 3D vision, on the other hand, can capture a complete and accurate representation of the part’s shape, allowing for detailed analysis and comparison against design specifications.

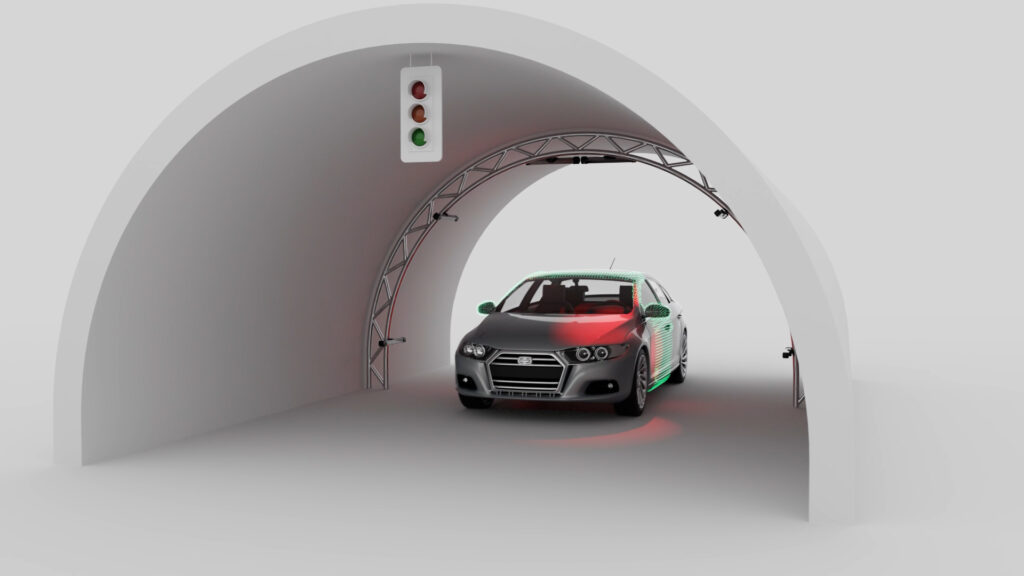

3D inspection of large objects, such as car.

3. Vision-Guided Robotics and Bin-Picking Operations

3D vision systems are invaluable in robotics, where the depth data helps robots accurately locate, orient, and manipulate objects in space. This technology is particularly beneficial for pick-and-place tasks, enabling precise control in automated assembly or packaging lines.

3D vision systems provide robots with the depth perception and spatial awareness necessary to accurately identify and grasp objects in a 3D space. This is particularly important in pick-and-place tasks, where robots need to pick up objects from one location and place them in another with precision.

Without 3D vision, robots would struggle to accurately perceive the position and orientation of objects, leading to errors and inefficiencies. With 3D vision, robots can operate with greater speed, accuracy, and flexibility, improving the overall efficiency and productivity of automated assembly and packaging lines.

4. Bin-Picking in Unstructured Environments

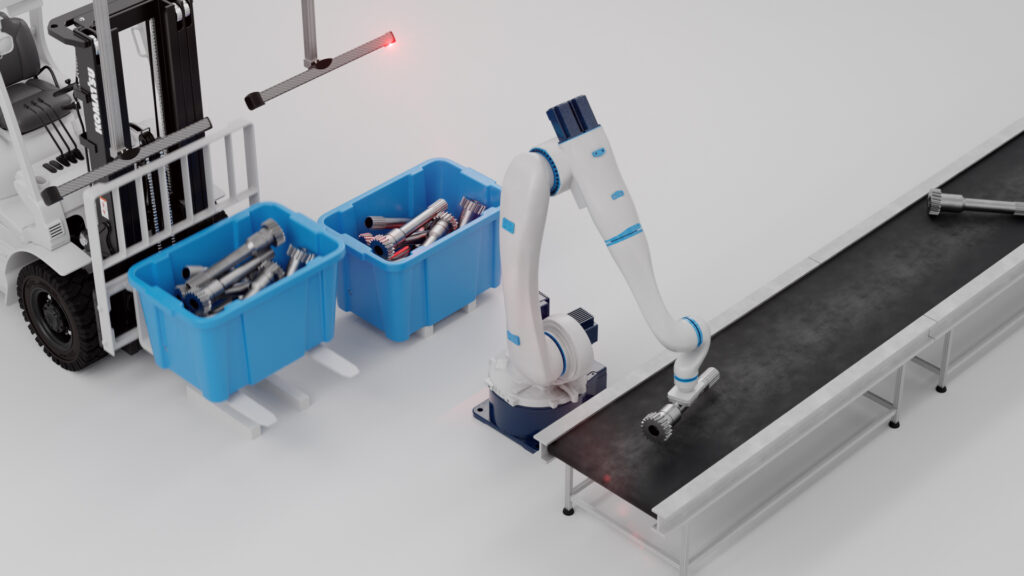

Advanced vision guided robotics (VGR) bin-picking 3D operation

3D vision is highly effective in complex environments where objects are randomly arranged. In bin picking, for example, robots equipped with 3D vision can autonomously retrieve items from bins, thanks to the depth information that helps them navigate and handle objects in varied orientations.3D vision systems excel in complex, unstructured environments like bin-picking scenarios, where objects are randomly piled and potentially overlapping.

In these situations, the ability of 3D vision to accurately perceive depth and spatial relationships allows robots to identify and locate individual objects, even when they are partially obscured. This enables them to plan efficient picking paths and avoid collisions, significantly improving the success rate and speed of bin-picking operations compared to traditional 2D vision systems or manual picking. This capability is crucial in industries like warehousing and logistics.

5. Assembly Verification and Tolerance Checking

3D vision application: tolerance checking and assembly verification

In assembly processes requiring exact placement and fit, 3D vision systems play a vital role. By providing detailed depth and spatial data, 3D vision ensures that each component is precisely aligned, contributing to the overall quality and reliability of the final product. In intricate assembly processes where components must be positioned with utmost accuracy, 3D vision systems are indispensable.

By furnishing precise depth and spatial information, these systems empower manufacturers to verify that each component is perfectly aligned and fits seamlessly within the assembly. This meticulousness significantly enhances the overall quality and dependability of the final product, minimizing the risk of malfunctions or premature wear and tear.

2D vs 3D Vision Systems: Which Should You Pick?

The best way to decide which vision system is right for you is to consider your specific needs and budget.

If you need a simple and inexpensive system for inspecting stationary or slow-moving objects, then a 2D vision system is a good option.

If you need a more accurate and flexible system for inspecting objects from all sides, then a 3D vision system is a better choice.

Here’s a quick comparison of 2D vs 3D vision systems:

Comparative overview of 2D and 3D machine vision systems
