3D Sensor Selector

Workspace dimensions
Please use the sliders below or input exact measures of the object you want to measure. The visualization on the right side will show your object in regards to the working volume of the Photoneo Sensors.

X - width(mm)

Y - length(mm)

Z - height(mm)

Device

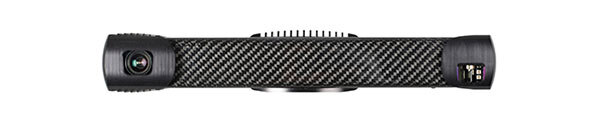

MotionCam-3D

PhoXi 3D Scanner

Continuous scanning
Models with extended scanning range
Dynamic scene / moving objects 900k 3D points
Static scene - 2M 3D points

Single scan
Extra small to extra large volumes
Static scene - 3M 3D points

MotionCam-3D Specification Sheet

Basic
Full

	S	S+	M	M+	L	L+
Scanning range	366-558 mm	630 - 1574 mm	497 - 939 mm	630 - 1574 mm	778 - 3034 mm	1300 - 3780 mm
Camera Mode
Point size	0.37 mm at 0.9 Mpix 0.25 mm at 2 Mpix	0.76 mm at 0.9 Mpix 0.52 at 2 Mpix	0.55 mm at 0.9 Mpix 0.37 mm at 2 Mpix	0.76 mm at 0.9 Mpix 0.52 mm at 2 Mpix	1.05 mm at 0.9 Mpix 0.72 mm at 2 Mpix	1.680 mm at 0.9 Mpix 1.150 mm at 2 Mpix
Accuracy	< 0.300 mm	<1.000 mm	< 0.500 mm	< 0.600 mm	< 1.250 mm	2.050 mm
Temporal noise	< 0.100 mm	< 0.150 mm	< 0.100 mm	< 0.100 mm	< 0.150 mm	0.550 mm
	See more	See more	See more	See more	See more	See more

	S	S+	M	M+	L	L+
Scanning range	366-558 mm	630 - 1574 mm	497 - 939 mm	630 - 1574 mm	778 - 3034 mm	1300 - 3780 mm
Camera Mode
Point size	0.37 mm at 0.9 Mpix 0.25 mm at 2 Mpix	0.76 mm at 0.9 Mpix 0.52 at 2 Mpix	0.55 mm at 0.9 Mpix 0.37 mm at 2 Mpix	0.76 mm at 0.9 Mpix 0.52 mm at 2 Mpix	1.05 mm at 0.9 Mpix 0.72 mm at 2 Mpix	1.680 mm at 0.9 Mpix 1.150 mm at 2 Mpix
Accuracy	< 0.300 mm	<1.000 mm	< 0.500 mm	< 0.600 mm	< 1.250 mm	2.050 mm
Temporal noise	< 0.100 mm	< 0.150 mm	< 0.100 mm	< 0.100 mm	< 0.150 mm	0.550 mm
Scanner Mode
Point size	0.25 mm @z = 442 mm	0.52 mm @z = 900 mm	0.37 mm @z = 650 mm	0.52 mm @z = 900 mm	0.72 mm @z = 1239 mm	1.150 mm @z = 1944
Accuracy	< 0.150 mm	< 0.500 mm	< 0.250 mm	< 0.300 mm	< 0.900 mm	1.500 mm
Temporal noise	< 0.050 mm	< 0.100 mm	< 0.050 mm	< 0.050 mm	< 0.100 mm	0.400 mm
General information
Depth map resolution (static mode)	1680 x 1200	1680 x 1200	1680 x 1200	1680 x 1200	1680 x 1200	1680 x 1200
Depth map resolution (dynamic mode)	Up to 1680 x 1200	Up to 1680 x 1200	Up to 1680 x 1200	Up to 1680 x 1200	Up to 1680 x 1200	Up to 1680 x 1200
Maximum FPS	Up to 20 fps	Up to 20 fps	Up to 20 fps	Up to 20 fps	Up to 20 fps	Up to 20 fps
Data acquisition time	10 ms	10 ms	10 ms	10 ms	20 ms	20 ms
Maximum object / camera speed	40 m/s	40 m/s	40 m/s	40 m/s	40 m/s	40 m/s
3D point throughput	15 million points per second	15 million points per second	15 million points per second	15 million points per second	15 million points per second	15 million points per second
GPU	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores

Dimensions	86 x 68 x 308 mm	86 x 68 x 308 mm	86 x 68 x 428 mm	86 x 68 x 428 mm	86 x 68 x 628 mm	86 x 68 x 628 mm
Baseline	230 mm	230 mm	350 mm	350 mm	550 mm	550 mm
Weight	1000 g	1000 g	1050 g	1050 g	1150 g	1150 g
	See more	See more	See more	See more	See more	See more

PhoXi 3D Scanner Specification Sheet

Basic
Full

	XS	S	M	L	XL
Scanning range	161 – 205 mm	384 – 520 mm	458 – 1118 mm	870 – 2150 mm	1680 - 3780 mm
Point to point distance	0.055 mm	0.174 mm	0.286 mm	0.524 mm	0.947 mm
Calibration accuracy	0.035 mm	0.050 mm	0.100 mm	0.200 mm	0.500 mm
	See more	See more	See more	See more	See more

	XS	S	M	L	XL
Resolution (3D Points)	Up to 3.2 M	Up to 3.2 M	Up to 3.2 M	Up to 3.2 M	Up to 3.2 M
Scanning range	161 – 205 mm	384 – 520 mm	458 – 1118 mm	870 – 2150 mm	1680 - 3780 mm
Optimal scanning distance	181 mm	442 mm	650 mm	1239 mm	2326 mm
Scanning area at sweet spot	118 x 78 mm	360 x 272 mm	590 x 404 mm	1082 x 772 mm	1954 x 1459 mm
Point to point distance	0.055 mm	0.174 mm	0.286 mm	0.524 mm	0.947 mm
Calibration accuracy (1 σ)	0.035 mm	0.050 mm	0.100 mm	0.200 mm	0.500 mm
Temporal noise (1 σ)	0.030 mm	0.050 mm	0.100 mm	0.190 mm	0.400 mm
Scanning time	250 – 2000 ms	250 – 2250 ms	250 – 2500 ms	250 – 2750 ms	250 – 3000 ms
Dimensions	86 x 68 x 296 mm	86 x 68 x 296 mm	86 x 68 x 416 mm	86 x 68 x 616 mm	86 x 68 x 941 mm
Baseline	85 mm	230 mm	350 mm	550 mm	850 mm
Weight	900 g	900 g	950 g	1100 g	1200 g
GPU	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores
	See more	See more	See more	See more	See more

Workspace dimensions Please use the sliders below or input exact measures of the object you want to measure. The visualization on the right side will show your object in regards to the working volume of the Photoneo Sensors.

Device

Scanning volume simulation

MotionCam-3D

MotionCam-3D Specification Sheet

PhoXi 3D Scanner Specification Sheet
